Sheet metal EN AW 1050

An alloy with an aluminium purity of 99% that's ideal for the chemical industry. Available in custom formats and sizes upon request.

The purity of the aluminium in this series is always > 99%. Available in both Mill Finish and Diamond Plate, the main features include a limited mechanical strength, good ductility, high thermal and electrical conductivity, and an excellent aptitude for surface finishing.

An alloy with low mechanical strength. The major applications include: the chemical and food industries, heat exchangers, packaging, and electrical conductors.

TECHNICAL CHARACTERISTICS

Weldability: good

Surface treatments

Technical anodisation: optimal
Decorative anodisation: suitable

Workability: sufficient

Resistance to corrosion

Normal atmospheres: poor
Marine atmospheres: poor

AVAILABILITY

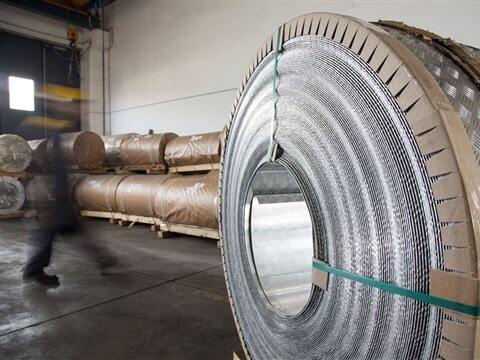

The alloy 1050 with Mill Finish is available in the physical state H18 and H24 in thicknesses ranging from 0.5 to 6 mm for all commercial formats, or else from coils in the size specified by the client. Other formats and custom sizes are available upon request.

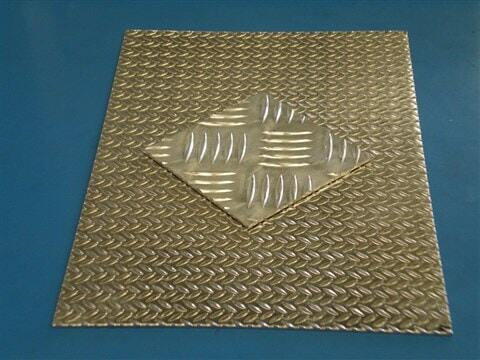

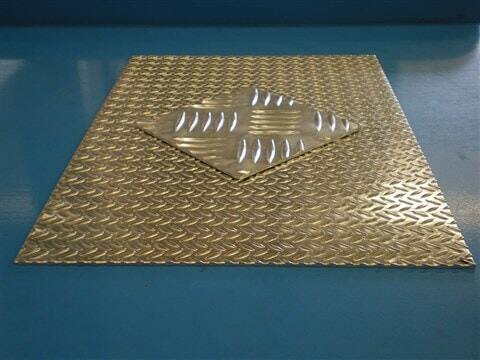

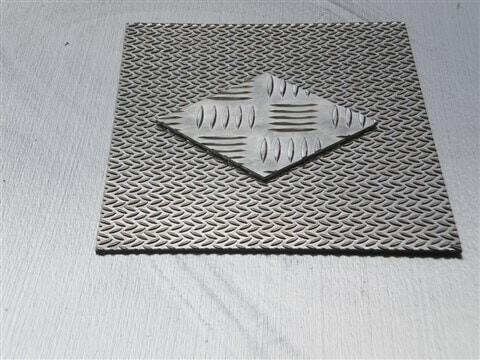

The alloy 1050 H24 with Diamond Plating is available in the thicknesses of 2, 3, and 5 mm for all commercial formats, or else from coils in the size specified by the client.

Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Alu
0,25	0,40	0,05	0,05	0,05	-	0,07	0,05	99,5

Tensile strength Rm (N/mm3)	Yield strength Rp 0.2	Elongation A5	Hardness HB
105	75	22-35	20

Physical state

Physical state	Specific thickness (mm)	Specific thickness (mm)	Rm MPa	Rm MPa	Rp0,2 MPa	Rp0,2 MPa	Min. elasticity (%)	Min. elasticity (%)	Radius of curvature	Radius of curvature	Hardness HBWa
	over	up to	min.	max.	min.	max.	A50 mm	A	180°	90°
H18	0,2	0,5	135		120		1			1,0 t	42
H18	0,5	1,5	140		120		2			2,0 t	42
H18	1,5	3,0	140		120		2			3,0 t	42
H22	0,2	0,5	85	125	55		4		0,5 t	0 t	27
H22	0,5	1,5	85	125	55		5		0,5 t	0 t	27
H22	1,5	3,0	85	125	55		6		0,5 t	0,5 t	27
H22	3,0	6,0	85	125	55		11		1,0 t	1,0 t	27
H22	6,0	12,5	85	125	55		12			2,0 t	27
H24	0,2	0,2	105	145	75		3		1,0 t	0 t	33
H24	0,5	0,5	105	145	75		4		1,0 t	0,5 t	33
H24	1,5	1,5	105	145	75		5		1,0 t	1,0 t	33
H24	3,0	3,0	105	145	75		8		1,5 t	1,5 t	33
H24	6,0	6,0	105	145	75		8			2,5 t	33
